Geist Switched Outlet Level Monitoring DUU5MGW1-24CF17-1S02A9K00-S-A - Power distribution unit - AC 240/415 V - 11 kW - 3-phase / 1-phase - Ethernet 10/100/1000, USB, RS-232 - input: universal inlet - output connectors: 24 (IEC 60320 C13/C19) - 0U - black powder coat - TAA Compliant

• Versatile connectivity options
  Equipped with interfaces like RS-232 and USB, the device ensures integration with various management systems, enhancing operational efficiency.
• Enhanced compliance and safety
  Compliant with standards such as IEC 62368-1 and UL 62368-1, the unit prioritizes safety and reliability for power distribution applications.
• Practical power management elements
  Features such as an LED display, circuit/breaker current monitoring, and IP reset button allow users to monitor and manage power distribution.
• Robust circuit protection
  Includes circuit breakers and a breaker/switch combination to prevent electrical overloads and ensure continuous operation.
• Flexible input and output configuration
  Supports both 3-phase and 1-phase input wiring, along with multiple outputs to adapt to power distribution needs.

The Vertiv Geist VP7UU0A2 is a vertical rack power distribution unit with a universal input that supports common AC power configurations. It has (24) Combination C13/C19 receptacles providing 11kW of power capacity. This unit can accommodate input power ranging from 16A-48A and 208V-415V in both single-phase and three-phase configurations. It helps simplify the rPDU procurement process since users can use a single model to work with different power sources. It is integrated with the Vertiv Geist Next Generation Interchangeable Monitoring Device (IMD). It has a 128x128 high-contrast LCD that displays the power usage. It features enhanced security with a secure boot that helps protect data and operations. It also has a redundant power-sharing port that connects two IMDs in the rack and provides backup power in case of power loss. The units are Dual Listed (UL/CE), TAA-Compliant, and individually tested for functionality and reliability.

• VP7UU0A2 UPDU accommodates 16A-48A and 208V-415V of power in both1Phase and 3Phase configurations
• The U-Lock outlets help lessen the risk of downtime caused by accidental cord disconnection

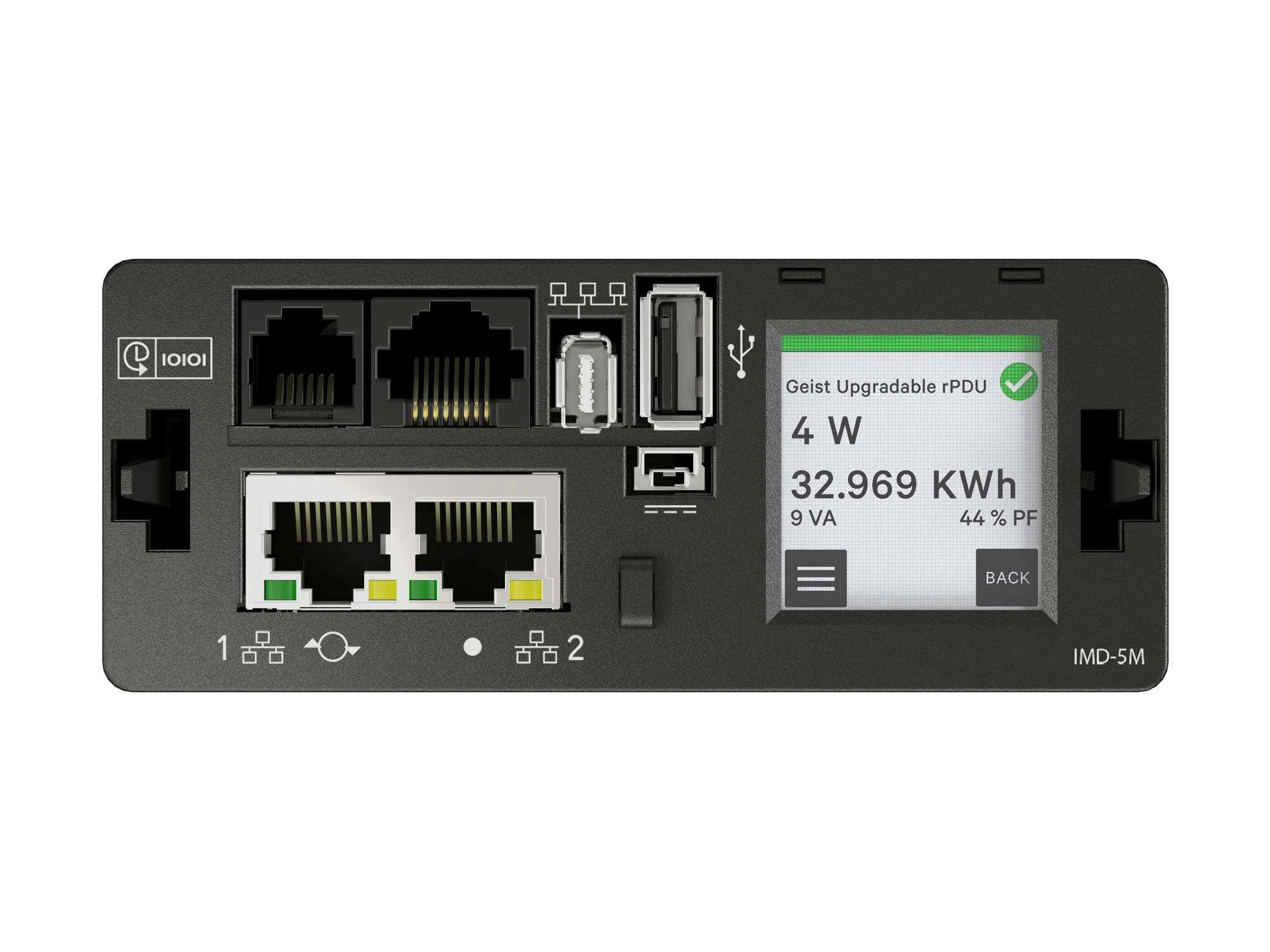

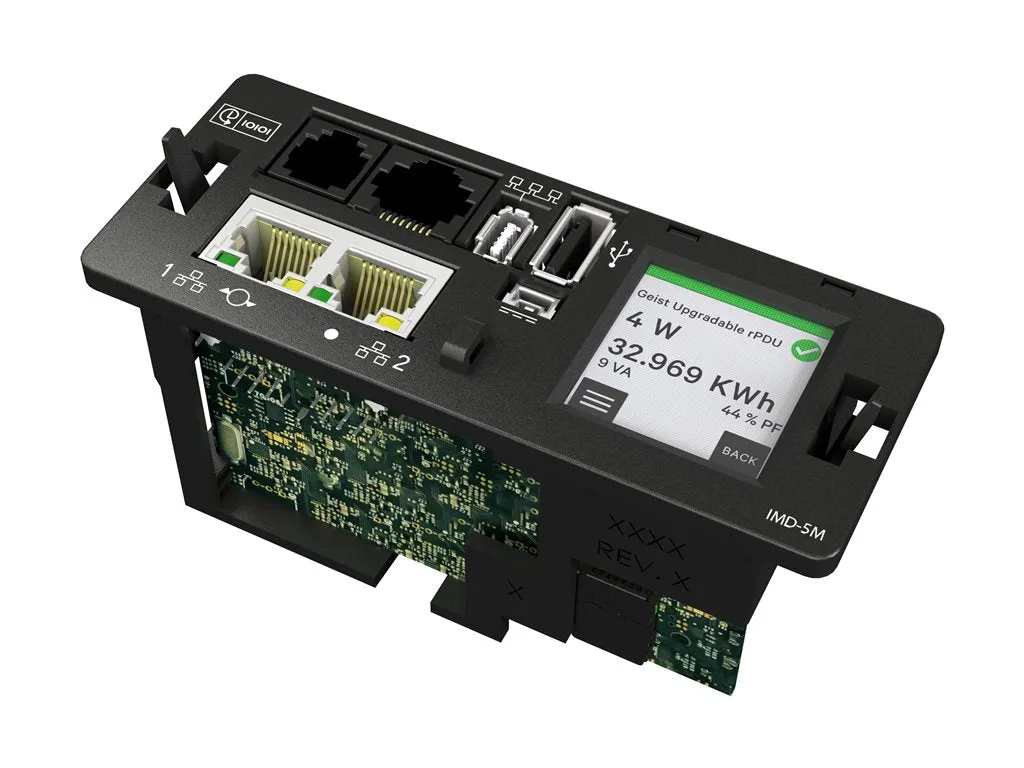

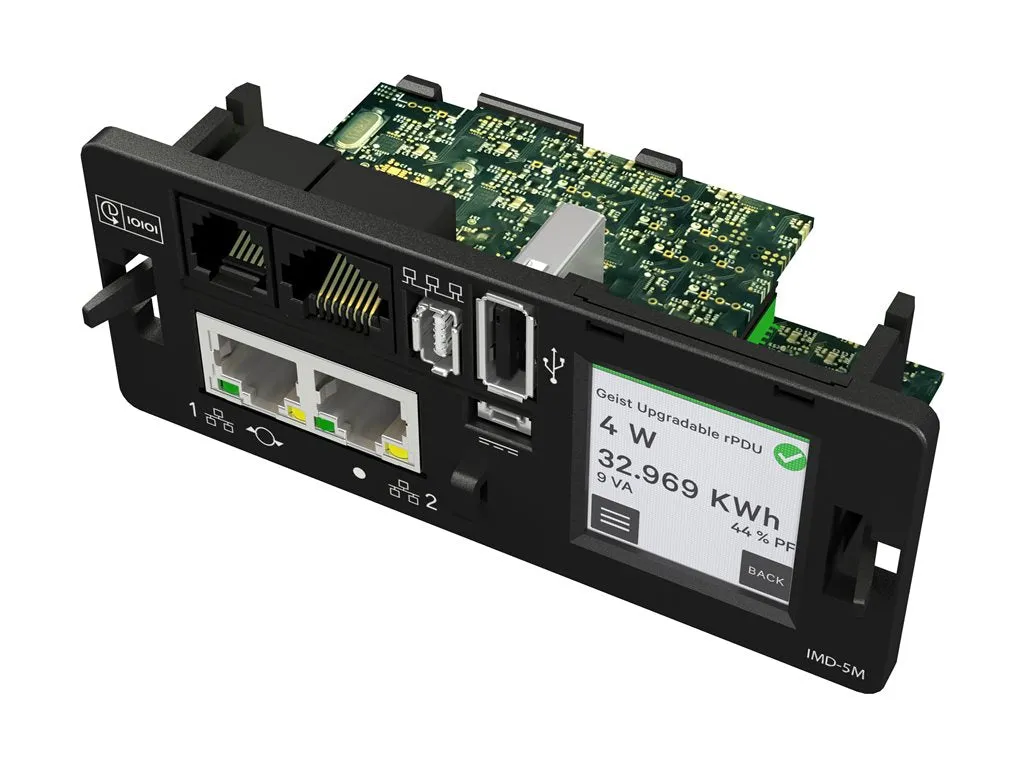

• Vertiv Geist Next-Generation IMD has a 128x128 high-contrast LCD for monitoring data
• Helps ensure that data and operations are protected with the enhanced security features
• Vertiv Geist rPDUs are individually tested, Dual Listed (UL/CE), TAA-Compliant, and RoHS certified
